Waterproof Fireproof Insulated Metal Sandwich Panel EPS PU Rock Wool Glasswool Galvanized

Name: Waterproof Fireproof Insulated Metal Sandwich Panel EPS PU Rock Wool Glasswool Galvanized
Brand: Lanjing
Price: 5 USD

Buy cheap Waterproof Fireproof Insulated Metal Sandwich Panel EPS PU Rock Wool Glasswool Galvanized product

Brand Name : Lanjing

Model Number : LJ-P01

Certification : CE, ISO, SGS

Place of Origin : Weifang,China

MOQ : 100 square meters

Price : UD$5-15 per square meter

Payment Terms : ,L/C,T/T,D/P

Supply Ability : 3000 Meters/Day

Delivery Time : 15-20 working days

Packaging Details : Standard Marine Packing

Service : Online Technical Support, Free Spare Parts

Useful Life : 60 Years

Transport Package : Standard Marine Packing

Feature : Environmental, Fireproof, Light Weight

Length : Customized, <11.9m

Steel Coating : PE/PVDF/SMP/HDP

Contact Now

Product Description

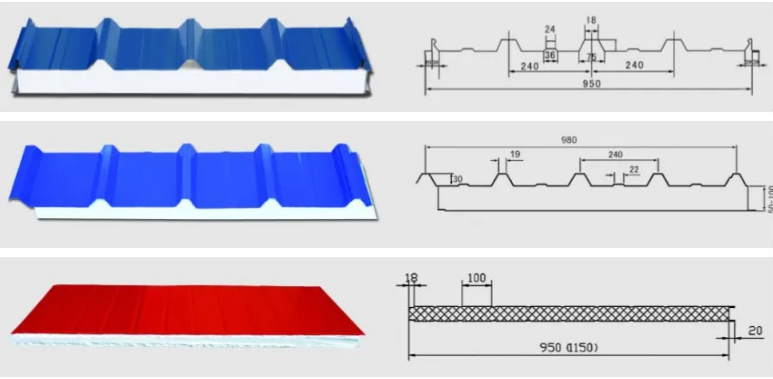

EPS Sandwich Panel

Thickness	50/75/100/120/150(mm)
Effective width	950, 980, 1150(mm)
Length	less than 11.8m.
Materials	Polystyrene foam board
Density	8-20 kg/m³
Color	White, sea blue, red etc.
Character	Light weight, heat insulation, water resistant
Usage	Roof, Wall

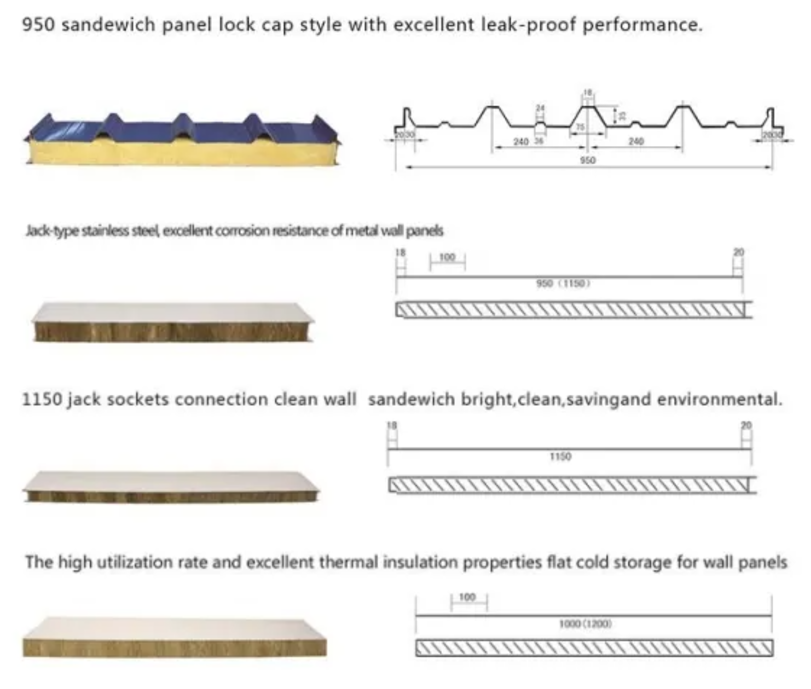

Rockwool Sandwich Panel

Waterproof Fireproof Insulated Metal Sandwich Panel EPS PU Rock Wool Glasswool Galvanized

Painting of steel plates	PVDF, SMP, HDP, PE;
Galvanized layer of steel plates	Exterior plate: Zinc coating above 150g/m2; Inner plate: Zinc coating above 100g/m2.
Thickness of steel plates	0.4mm-0.8mm.
Thickness of core	50/75/100/120/150mm.
Density of core	60/80/100/120kg/m³
Effective width	950/1150mm
Panel Length	Any length

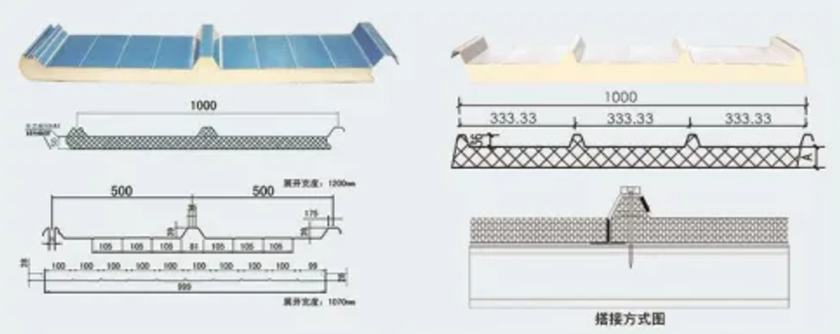

PU Sandwich Panel

RP-930/1000 Type		Application
Effective width(mm)	930/1000	Roof panel
Thickness of plate(mm)	0.4-0.8
Thickness of core material(mm)	40/50/100/150mm
Core material	PU/PIR
WP-930/1000Type		Application
Effective width(mm)	930/1000	Wall panel
Thickness of plate(mm)	0.4-0.8
Thickness of core material(mm)	40/50/100/150/200mm
Core material	PU/PIR

1. Roof sandwich panel

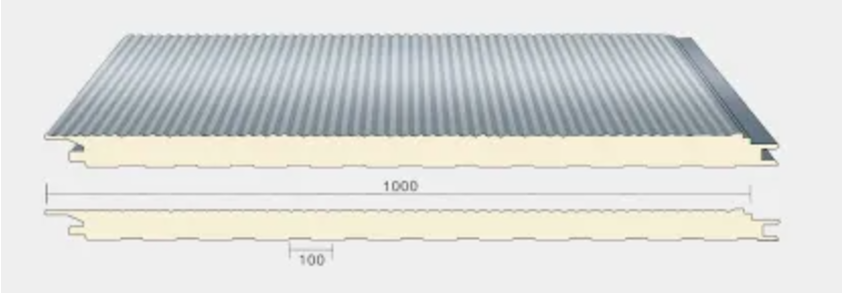

2. Wall sandwich panel

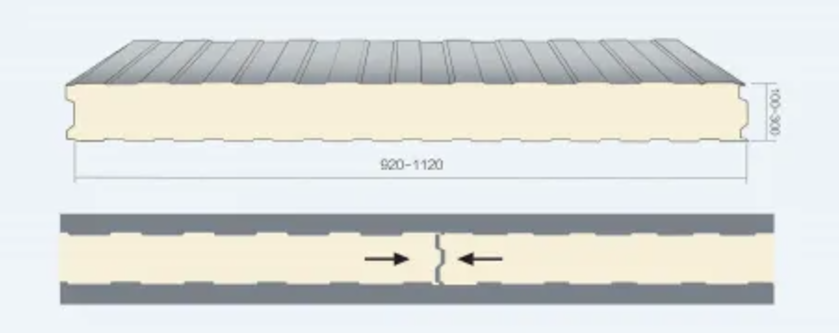

3.Cold room sandwich panel

Sandwich Panel Performance

Packing&Delivery

Sandwich Panel Project Cases

FAQ

Q1: Do you offer guiding service for installation on site overseas?

A: Yes. We do. We will give detailed installation drawings and video for free. And if you need, we can send guide engineers as installation director even a working team to your construction site.

Q2: How can I get your quick quotation on my project?

A: You can chat with us at anytime via email or phone to offer us your detail information or you can just leave your message on our website. We will give you the best quotation ASAP.

Q3: What's the procedure of trading?

A: Design drawing →Confirm drawing→Quotation→PI→ConfirmPI→Arrange 30% deposit→Manufacture→ QCinspect→ Paybalance→Shipping.
